SFC fuel cells for your mission

SFC fuel cells for your mission

MaxaVision, through SFC Energy, offers a variety of highly durable fuel cells to meet the specific requirements needed for military, security forces, and security and public applications. Tested according to MIL-STD, the fuel cells perform in the harshest conditions delivering 100% reliable power.

Ensure the Mission's Power Supply

A reliable power supply is one of the major technical challenges for modern task forces. SFC’s fuel cells for military and law enforcement applications have significant advantages. An essential factor is the quiet operation, virtually without any detectable signatures. In addition, the fuel cells are very user friendly and safe to handle. They are simple plug-and-play solutions. The fuel cells charge existing batteries completely automatically. The system automatically starts and returns to standby mode when the battery is charged. This means not only will the user always have full power reserves, but the user’s batteries will also last much longer because continuous charging prevents deep discharge.

Products to explore. . .

EMILY 3000

From on-board power supply to a field-based charging station the EMILY 3000 is a virtually silent mobile power source for electrical devices in command and multipurpose vehicles.

The SFC EMILY fuel cell takes care of the on-board power supply of a stationary vehicle when the engine is not running. It is directly connected to the on-board battery for this purpose. Electrical peak loads are compensated directly from the battery, while the SFC EMILY continuously monitors this and, if necessary, recharges independently.

In addition to the applications in and on vehicles, which are increasingly in demand, the SFC EMILY is used to supply power for mobile and stationary defence applications. It is suitable for remote use and as a battery charger in the field. The SFC EMILY can be directly connected to the Power Manager 3G with an accessory cable. Remote from the vehicle, it can therefore power applications such as radios, radar and weapons systems or at the same time recharge several batteries. The SFC EMILY 3000 has an extremely low consumption of not even 100 ml per hour and provides 2.2 kWh of electricity per day. The weight is only 12.5 kg.

EMILY BROCHURE

JENNY 600S & JENNY 1200

The JENNY 600S and JENNY 1200 are portable fuel cells for dismounted operations and are reliable power supplies with massive weight savings.

The portable fuel cell system SFC JENNY 600S only weighs about 1.7 kg and is therefore easy to carry in a backpack. The system provides 600 Wh of electrical energy per day. Three to four 350 ml fuel cartridges contain enough capacity for 72 hours of deployment. This means up to 80 per cent of battery weight can be saved. Therefore, soldiers can equip
themselves with the minimum of batteries and instead carry additional food, water and ammunition, having saved the weight or alternatively extend the duration of the mission.

JENNY 600S BROCHURE

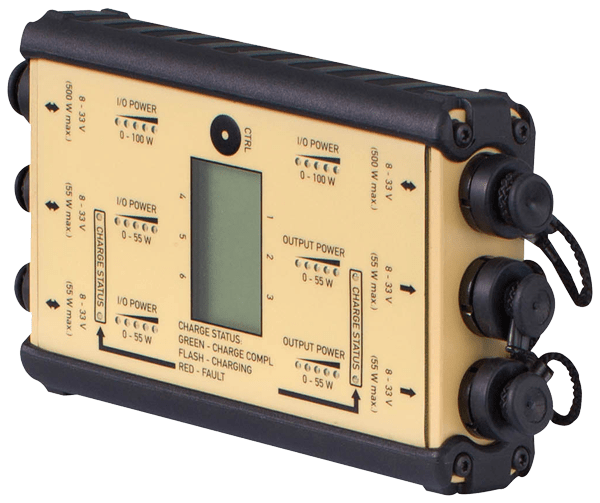

POWER MANAGER 3G

SFC Power Manager 3G – Portable and intelligent power distribution.

The SFC Power Manager 3G enables the soldier to use all energy sources available in the field such as hybrid batteries, solar panels, vehicle power and fuel cells to power devices or charge batteries. Thanks to intelligent cable coding, the SFC Power Manager 3G automatically detects the connected devices and adjusts the output voltage correspondingly. This results in very low power losses and an extremely efficient power distribution.

POWER MANAGER 3G BROCHURE

EFOY PRO FUEL CELLS

EFOY Pro fuel cells provide ideal mobile or off-grid power solutions for various application areas.

EFOY Pro fuel cells are the perfect power generator, meeting all requirements for stationary and mobile applications. They are used anywhere solar modules, diesel generators and batteries reach the limits of their capabilities. EFOY Pro fuel cells provide power directly on site in a reliable, environmentally friendly and quiet manner for the safe, interruption-free functioning of the equipment they power. This includes the reliable, off-grid power supply of monitoring systems, BOS digital radio networks as well as the back-up power supply for critical infrastructures.

EFOY PRO BROCHURE

EFOY PRO 12000

EFOY Pro fuel cells provide ideal mobile or off-grid power solutions for various application areas.

EFOY Pro fuel cells are the perfect power generator, meeting all requirements for stationary and mobile applications. They are used anywhere solar modules, diesel generators and batteries reach the limits of their capabilities. EFOY Pro fuel cells provide power directly on site in a reliable, environmentally friendly and quiet manner for the safe, interruption-free functioning of the equipment they power. This includes the reliable, off-grid power supply of monitoring systems, BOS digital radio networks as well as the back-up power supply for critical infrastructures.

EFOY PRO BROCHURE

SFC FUEL CARTRIDGES

Autonomous power with SFC fuel cartridges – Maximum energy in the smallest space.

SFC fuel cells are operated as direct methanol fuel cells with the fuel methanol. The methanol is stored in SFC fuel cartridges that have been designed especially for this purpose. Depending on requirements, SFC fuel cartridges are available in different 0.35, 2.5, 5, 10, 28 and 60 litre capacities. If your autonomy needs are higher, up to four fuel cartridges can be connected to one fuel cell using the DuoCartSwitch. High-purity clean methanol is needed to reliably operate the SFC fuel cells. Only when original SFC fuel cartridges are used, can the maximum operating life of the fuel cell be guaranteed. SFC fuel cartridges offer a lot of energy in the smallest space thanks to the high energy density of methanol. As a result, the autonomy of your off-grid applications can be increased many times.
